MEP Systems Modeled from Point Cloud Data

MEP systems modeled from point cloud data span HVAC, piping, electrical, fire protection, equipment, and their connections. ViBIM builds them as one connected model that follows ducts and pipes as installed, including sags and offsets, rather than the straight routes on old drawings. Each system’s scope is listed below:

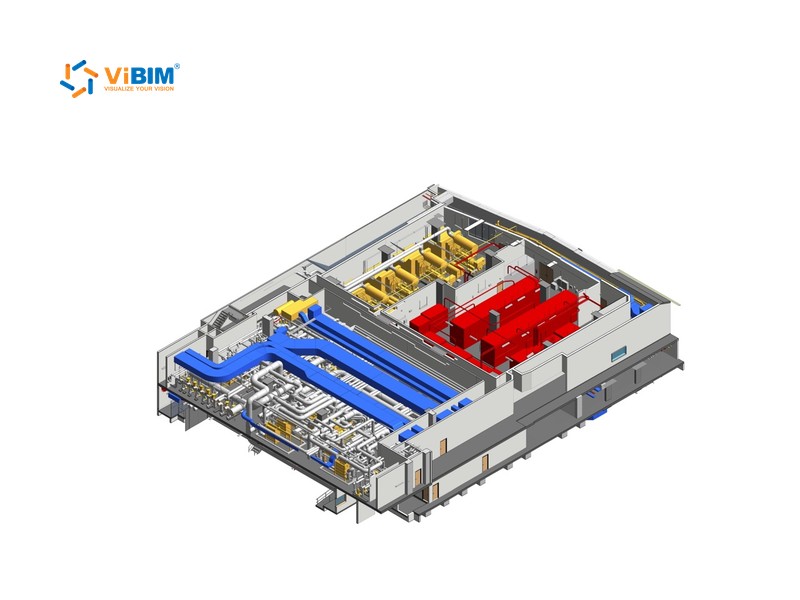

Revit HVAC model of a mechanical room with air handling units and supply ducts for MEP BIM modeling

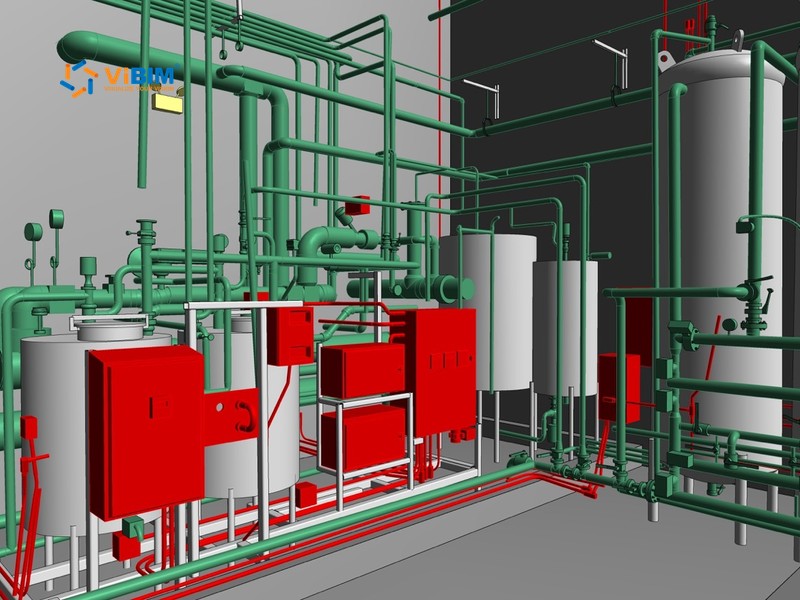

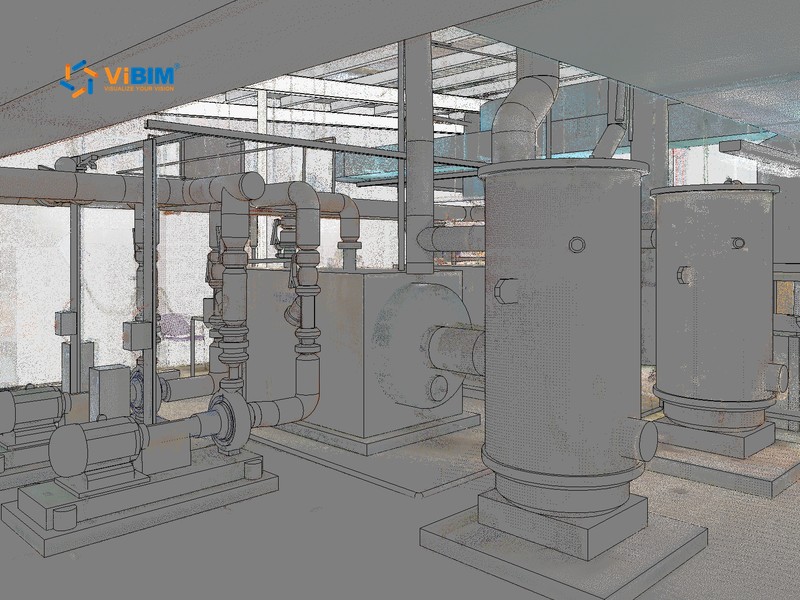

MEP BIM modeling of a boiler room with tanks and piping in Revit

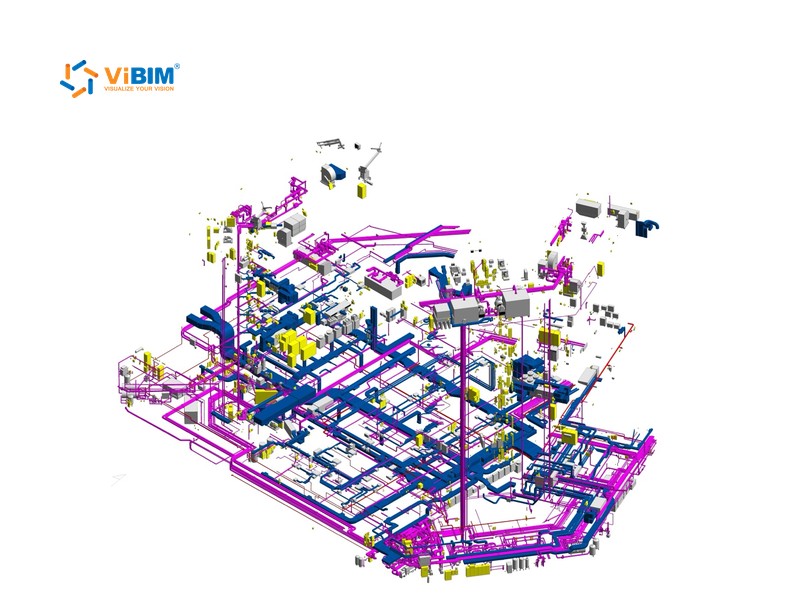

Revit MEP model of conduit, cable tray, and electrical service routes across a floor

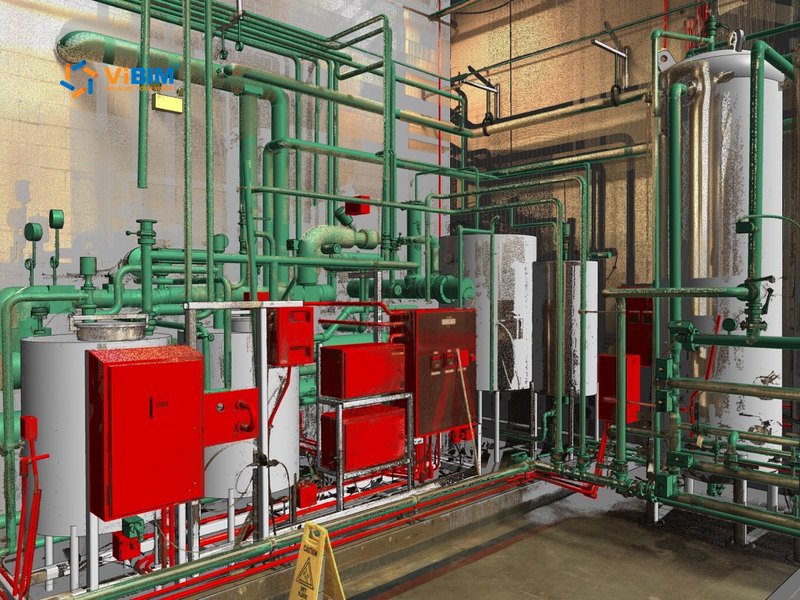

Revit fire protection piping and fire pump controllers shown over the scanned room for MEP BIM modeling

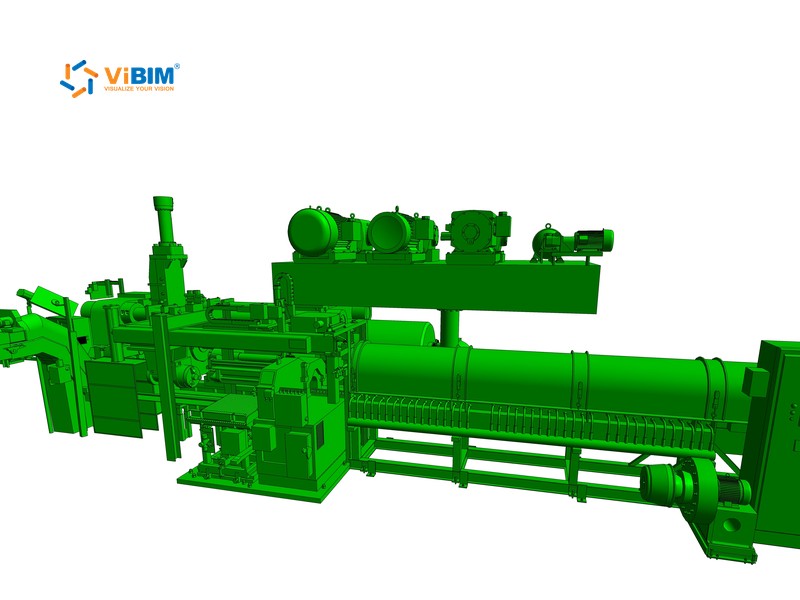

Parametric Revit MEP family of an industrial pump and motor assembly

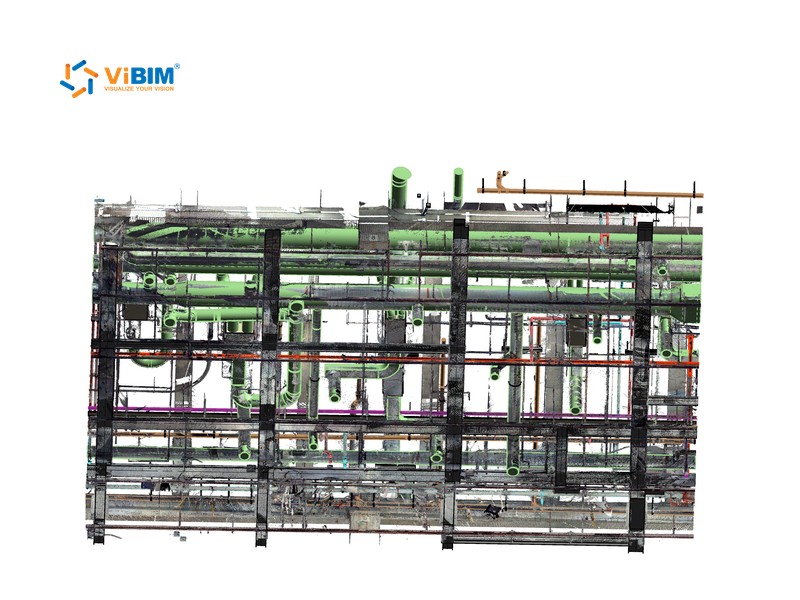

Connected MEP pipe network modeled in Revit over the point cloud

HVAC System Modeling

We precisely model complete HVAC systems, from chillers, air handling units (AHUs), cooling towers, and rooftop units to duct distribution networks. Supply, return, and exhaust systems are categorized separately, with the required fittings and insulation.

Piping System Modeling

We model piping systems such as domestic hot and cold water, drainage, gas, and hydronic HVAC piping.

Electrical and Conduit System Modeling

We model cable trays, conduits, junction boxes, fixtures, and panels in their scanned positions, even where routes dip, shift, or run along non-orthogonal surfaces.

Fire Protection Systems

We model sprinkler systems, zone valves, fire hose cabinets, extinguishers, and sprinkler piping. Equipment such as smoke curtains, tanks, and zone controls is modeled as parametric families or as in-place elements, depending on visibility and LOD targets. In-place elements are later converted to loadable families.

MEP Equipment Families

We create parametric Revit families for pumps, fans, panels, and other MEP equipment, or use ViBIM’s family library. Each family carries its correct category and metadata and is placed precisely from the scan data.

System Connectivity and Organization

Elements connect logically and geometrically, from pipe to equipment, so each system can be followed as one network. Each system is categorized in Revit, with materials and specifications taken from your drawings or records. Modeled fittings and valves allow your team to extract system data.

MEP Scan to BIM Deliverables

MEP scan to BIM deliverables start with a native Revit model of the connected systems. Navisworks, IFC, and DWG files are exported from that same model, so every file you receive shows the same routes. The four files are described below:

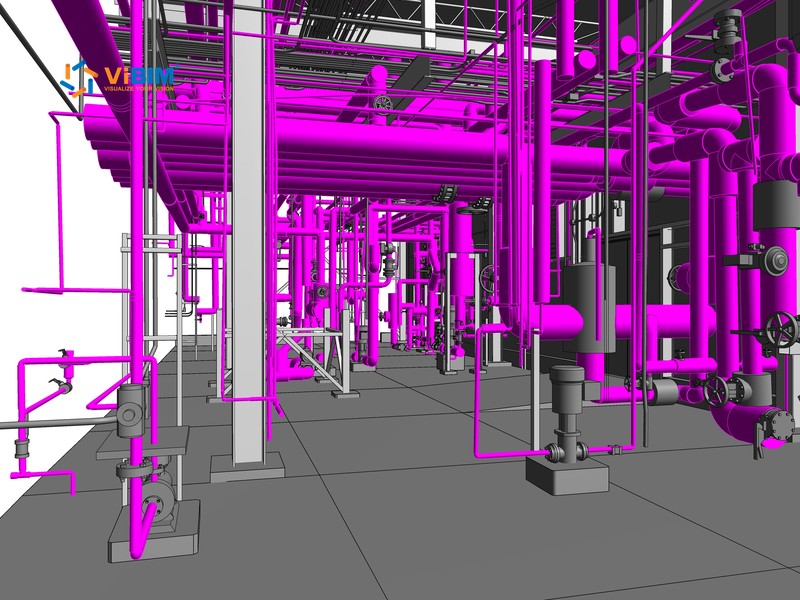

Native Revit MEP BIM model with piping, valves, and equipment

Native MEP Revit Model

  • Contains: HVAC, piping, electrical, and fire protection systems with connected routes, equipment families, and system parameters.
  • Format: Revit .RVT, built in your team’s Revit version.
  • Used for: Retrofit design, routing new ducts and pipes, and the as-built MEP record.

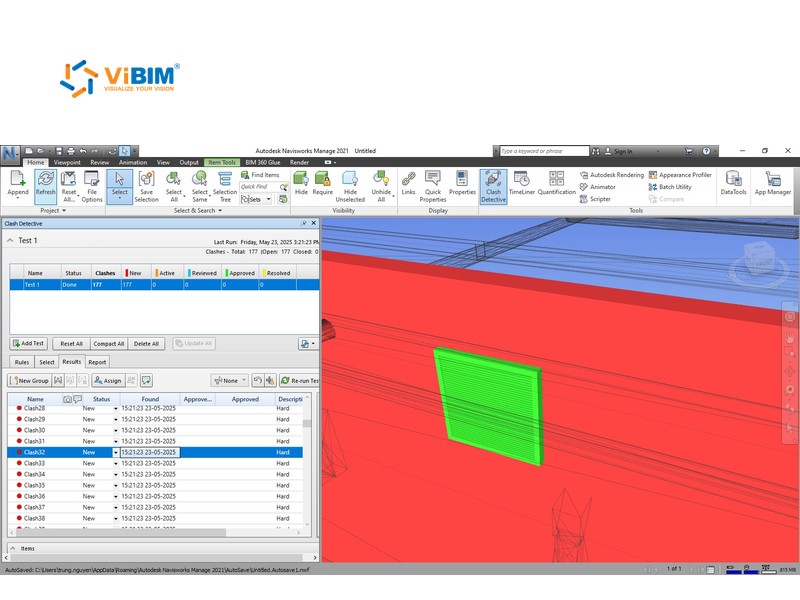

Navisworks clash review of the MEP BIM coordination model

Coordination Model in Navisworks

  • Contains: The MEP model exported for review with architectural and structural models.
  • Format: NWC file.
  • Used for: Clash detection across disciplines.

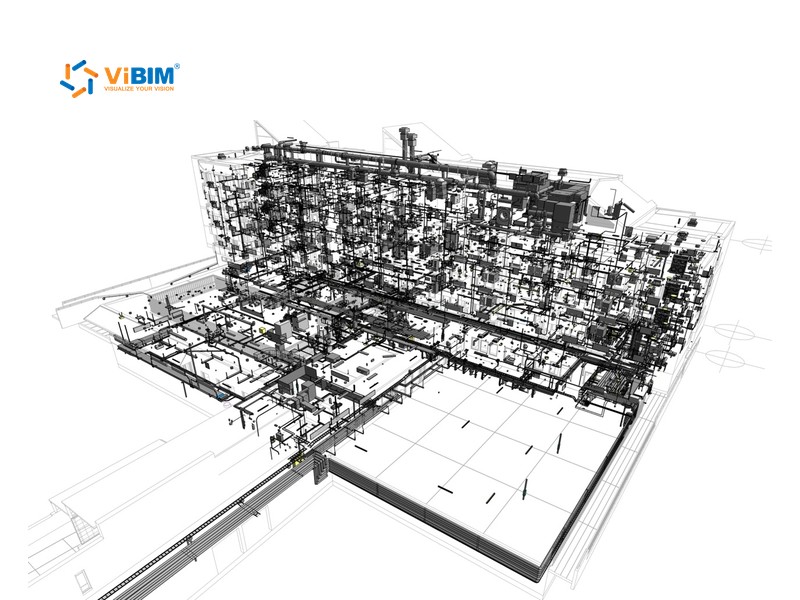

Whole-building MEP BIM model in wireframe, prepared for IFC export

IFC Model for Non-Revit Teams

  • Contains: Systems, equipment, and their parameters in IFC.
  • Format: IFC, exported to the schema your project calls for.
  • Used for: Handover to consultants or facility teams that do not use Revit.

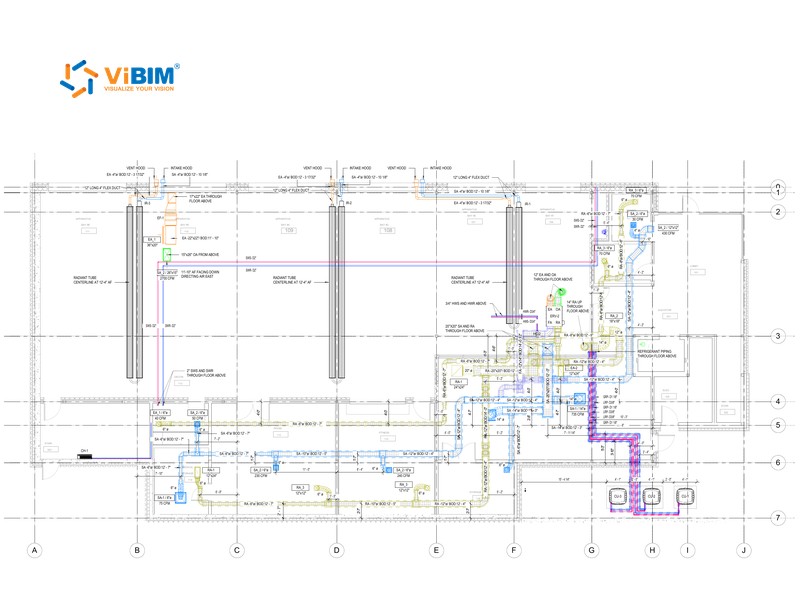

2D MEP drawing of a ground floor mechanical plan with ductwork, piping, and equipment tags

2D MEP Drawings

  • Contains: Plans and sections of the installed MEP systems, taken from the model.
  • Format: DWG files.
  • Used for: Retrofit markups and on-site checks of existing MEP systems.

How the MEP Point Cloud to BIM Process Works

The MEP point cloud to BIM process starts with scope review, then covers main distribution routes, equipment, fittings, and system data before QA and export. The seven steps are outlined below:

Project Scope Clarification and Point Cloud Review

We review your requirements, check the point cloud’s quality and completeness, and raise requests for information (RFIs) on any initial questions before modeling begins.

We model HVAC, electrical, plumbing, and fire protection systems with suitable Revit families. Main distribution routes come first to establish the model hierarchy and support early spatial coordination.

Every MEP object is modeled within the project’s tolerance and checked with our Missing and Misalignment Analysis tool. Sagging ducts, bent pipes, and flexible connections are faithfully reconstructed through segmented modeling and adjusted fittings.

We manually model non-standard or complex elements, including pump assemblies, fire suppression devices, AHUs, and equipment in tight or occluded areas. Revit families are created or adapted to match the assets’ geometry and metadata.

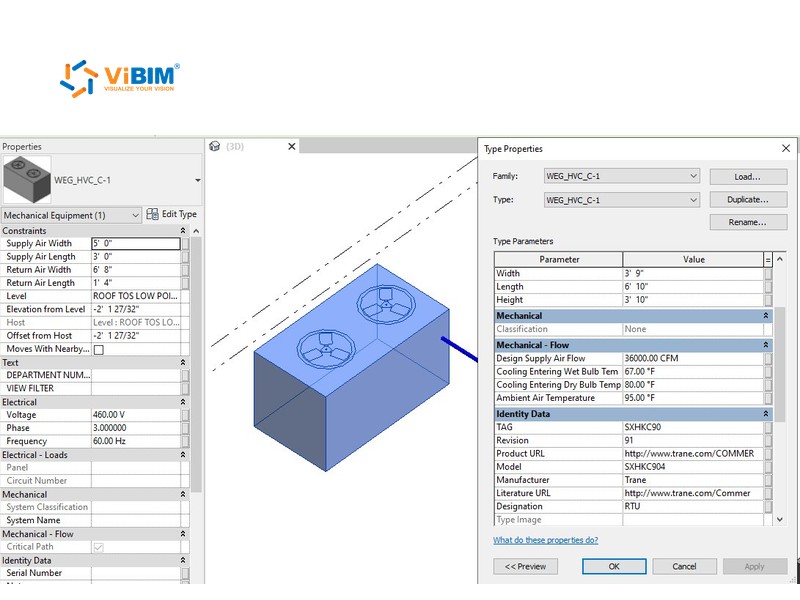

We assign equipment and component metadata according to your requirements, using COBie, IFC attributes, or your asset tagging scheme. Asset IDs, model numbers, and manufacturer data are included where specified.

QA/QC covers clash detection, system connectivity, naming standards, and comparison with the point cloud. Overlaps caused by modeling errors and broken connections are corrected and rechecked before release. Clashes that exist on site are reported to your team and retained as scanned.

We deliver Revit (.rvt) models with optional IFC, NWC, and DWG exports. ViBIM’s Vi-T01 tool converts model-in-place objects into loadable families for scheduling and reuse. Before submission, families are purged and cleaned; models are detached, run through Revit Audit, and aligned with the naming conventions.

Accuracy, LOD, and Quality Control in MEP Scan to BIM

MEP scan to BIM accuracy, LOD, and quality control follow targets agreed with you for each project. ViBIM’s reviewers check system detail against the scan at your tolerance, most closely where ducts, pipes, and trays overlap. The controls are described below:

LOD and LOI Set per MEP System

Level of development, or LOD in BIM, is usually set at LOD 300 to LOD 400 for MEP retrofit design and coordination. LOD 500 is used when your contract or BEP asks for it, often for facility management handover. Asset data such as IDs, model numbers, and manufacturer references is added to match the level of information (LOI) your team specifies.

MEP Model-to-Scan Verification

The Missing and Misalignment Analysis tool compares the model with the point cloud and flags missed or shifted objects. Two independent reviewers then check each flag, along with duct, pipe, and equipment positions at the project tolerance. Navisworks clash detection, connectivity checks, and naming checks follow.

BIM Standards We Follow

The MEP models follow your own BIM requirements and the industry standards listed below:

  • LOD Specification by BIMForum (USA)
  • USIBD Level of Accuracy (LOA) Specification
  • AIA Digital Practice Documents (E202™, E203™, G202™)
  • ISO 19650 Series (PAS 1192-2:2013 where a legacy project requires it)
  • Client-Specific BIM Standards
  • Established Revit Best Practices for Modeling and Correct Category Use
  • Standardized Naming Conventions and Parameter Structuring (aligning with ISO-based principles, and adaptable to Uniclass or OmniClass classifications where required)
  • Model-to-Point Cloud Accuracy Tolerances: Models are checked against point cloud data at the model-to-scan tolerance set for the project, 50, 30, or 15 mm (about 2, 1.2, or 0.6 in) or a custom value your spec sets. Deviations beyond tolerance trigger review and annotation.
2x INDEPENDENT QC LAYERS

INDEPENDENT
QC LAYERS

Want missed valves and shifted pipes caught before your team reviews the model?

Get a Free Trial

Featured MEP BIM Modeling Projects by ViBIM

ViBIM’s featured MEP BIM modeling projects show dense MEP systems in existing buildings, from mechanical rooms to above-ceiling runs. The MEP systems in every project listed were modeled from client scans and count among the company’s 1,000+ BIM projects since 2014.

View all projects
Revit Modeling for a US Factory with Dense MEP Systems
INDUSTRIAL, LOD 300

Revit Modeling for a US Factory with Dense MEP Systems

Architecture, structure and dense MEP modeling for a US factory, delivered to LOD300 from point cloud data.

View more
Revit Modeling for MEP Systems at Industrial Factory in the United States
INDUSTRIAL, LOD 300

Revit Modeling for MEP Systems at Industrial Factory in the United States

Dense MEP modeling for a US industrial factory, delivered to LOD300 from point cloud, PDF drawings and imagery.

View more
Revit Modeling for MEP Systems at Office Building in the UK
LOD 300, OFFICE

Revit Modeling for MEP Systems at Office Building in the UK

Dense MEP modeling for a 17-story UK office building, delivered to LOD300 from point cloud and PDF drawings.

View more
Revit Modeling Services for Hospital Complex at Canada
HEALTHCARE, LOD 300

Revit Modeling Services for Hospital Complex at Canada

Architecture, structure and dense MEP modeling for a Canadian hospital complex, delivered to LOD300 from point cloud and site imagery.

View more
Revit Modeling Services for Office Building at UK
LOD 300, OFFICE

Revit Modeling Services for Office Building at UK

Architecture, structure, topography and MEP modeling for a 16-story UK office building, delivered to LOD300 from point cloud and TrueView.

View more
Revit Modeling for Factory in US
INDUSTRIAL, LOD 300

Revit Modeling for Factory in US

Architecture, structure, topography and dense MEP modeling for a US factory, delivered to LOD300 from point cloud imagery.

View more
Revit Modeling Services for Office Building at Canada
LOD 300, OFFICE

Revit Modeling Services for Office Building at Canada

Architecture, structure, topography and MEP modeling for a large Canadian office complex, delivered to LOD300 from point cloud, 2D CAD and TrueView.

View more
Revit Modeling for Supermarket in the United Kingdom
LOD 200, LOD 400, RETAIL

Revit Modeling for Supermarket in the United Kingdom

Architecture, structure, topography and MEP modeling for an 8,300m² UK supermarket, delivered to LOD400 (LOD200 MEP) from point cloud and PDF drawings.

View more

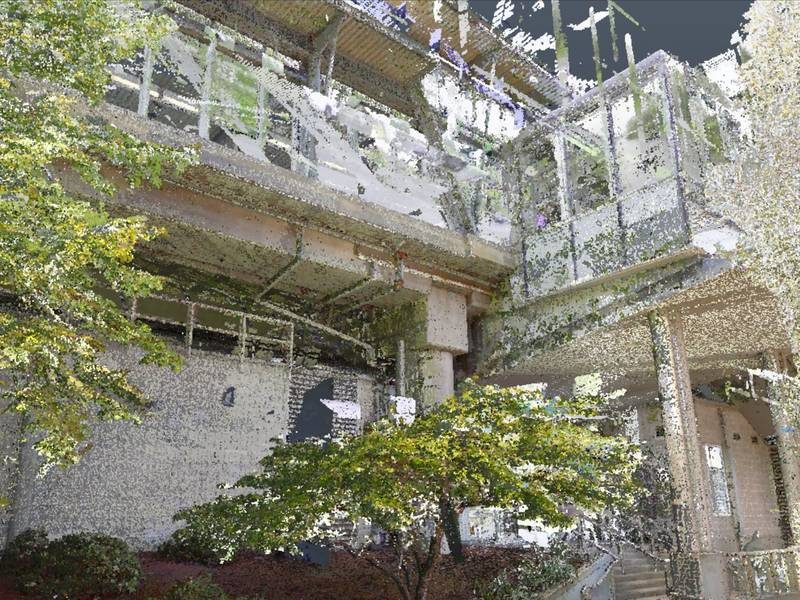

Point cloud scan of the same building before BIM modeling

Why Choose ViBIM for MEP BIM Modeling Service

The advantages of choosing ViBIM’s 3D BIM modeling services for MEP projects are listed below:

ViBIM team working in the office to deliver BIM projects on time

ViBIM modeler working in Revit to shorten BIM project turnaround

Coordinated MEP BIM model under quality control review at ViBIM

ViBIM project team coordinating with a client over a video call

ViBIM managers reviewing workflow improvements for BIM delivery

On-Time Delivery

A dedicated project manager tracks HVAC, piping, and electrical progress against each milestone. ViBIM completes 99% of projects as scheduled, and large sites can be delivered in stages to match your schedule.

Fast Turnaround

Standard pumps, fans, and fittings come ready from ViBIM’s Revit family library instead of being rebuilt for each project. That library and in-house automation tools help keep turnaround 30% faster than the market average.

High Accuracy and Reliability

In crowded mechanical rooms and above-ceiling spaces, the Missing and Misalignment Analysis tool flags missed or shifted objects. Each flagged issue is fixed and confirmed by two independent reviewers before handover. ViBIM’s production team holds architecture or engineering degrees and is trained in-house in BIM.

Responsive Communication

ViBIM answers emails on your MEP scope promptly, evenings and weekends included. When a route or component is unclear in the scan, ViBIM sends your team a screenshot of that area with the question, so your engineers can answer without opening the model.

Continuous Improvement

ViBIM’s MEP modeling keeps improving through automation, AI, and streamlined workflows. Its in-house tools include Vi-T01 and the Missing and Misalignment Analysis tool.

Pham Thanh, Founder and CEO at ViBIM

Pham Thanh
Founder & CEO

Pham Thanh is the founder and CEO of ViBIM, which he grew from three employees into a 30-strong BIM outsourcing team. Contributed to Vietnam’s first national BIM Guidelines (Ministry of Construction, 2017). MBA, Solvay Brussels School of Economics and Management (2012); Bachelor of Architecture, ABAC University (2008); BIM Management Certificate, BCA Academy, Singapore (2014).

Learn More

Do Van Yen, Architectural Team Leader at ViBIM

Do Van Yen
Architectural Team Leader

Do Van Yen is ViBIM’s Architectural Team Leader and one of its first three specialists, working with the founder since 2011. Has led architectural BIM modeling since 2014 and helped build the company’s Scan to BIM services and standards from the start. Civil Engineering, University of Transport and Communications.

Nguyen Tien Trung, Structural Team Leader at ViBIM

Nguyen Tien Trung
Structural Team Leader

Nguyen Tien Trung is ViBIM’s Structural Team Leader and manages the company’s BIM standardization system, leading structural modeling on its largest, most complex projects. Construction Engineering, Hanoi University of Civil Engineering (2019).

Truong Van Huong, MEP Team Leader at ViBIM

Truong Van Huong
MEP Team Leader

Truong Van Huong is ViBIM’s MEP Team Leader, leading mechanical, electrical and plumbing BIM modeling and coordination. Brings years of hands-on MEP design and implementation experience to large, complex project delivery. Bachelor’s in Electrical Engineering, specializing in Electrical Systems (2018).

Truong Quoc Trung, Project Manager at ViBIM

Truong Quoc Trung
Project Manager

Truong Quoc Trung is ViBIM’s Project Manager and one of its first-generation modelers, with the company since 2018. Runs its medium to large-scale BIM projects end to end and mentors new modelers. Practical Engineer’s degree in Civil Engineering, Construction Technical College No. 1 (2017).

What Do You Need for an MEP BIM Modeling Quote?

An MEP BIM modeling quote is based on the systems in scope, the detail and tolerance, and the files you need back. ViBIM returns it within 12–24 hours once your team sends four items. The items are listed below:

  • Scan and records: Your point cloud, registered or not, in RCP or RCS format (E57 also works), with any MEP drawings or equipment schedules. Drawings matter most for ducts and pipes above closed ceilings or inside walls. Without a scan, site photos and existing drawings still allow a first estimate.
  • Systems and detail: The systems to model, the LOD, the tolerance, and any equipment that needs a custom family, such as a pump assembly.
  • Outputs: Your Revit version, plus whether you need Navisworks, IFC, or DWG files.
  • Timeline: The date your engineers need the model, and whether it should arrive in stages.

If the architecture and structure are not modeled yet, ViBIM can quote them from the same point cloud through its scan to BIM services. If your client requires an NDA, it can be signed before you share any files.

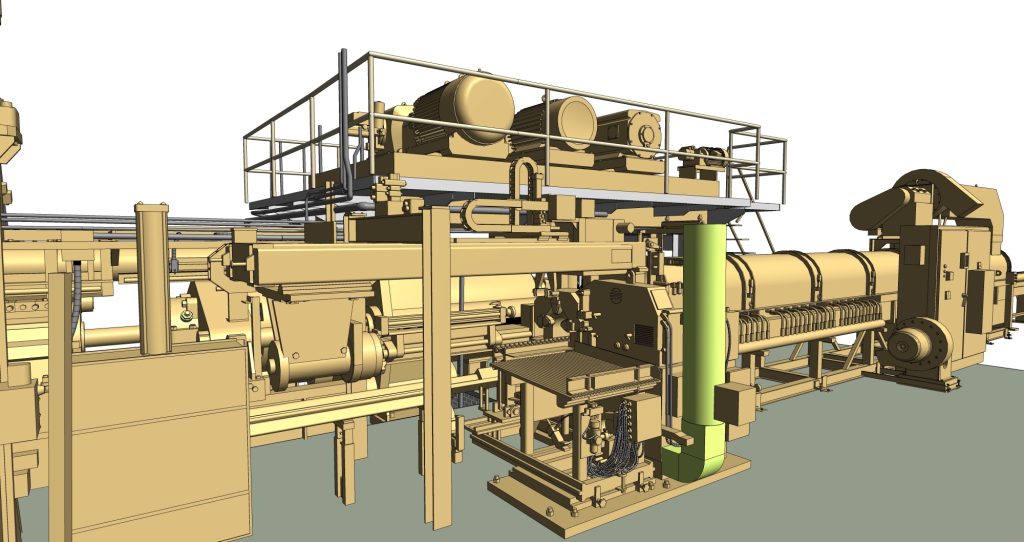

mep bim modeling from point cloud service
